1972 Custom Louisiana Steel Work Vessel

Honolulu, Hawaii

$195,000

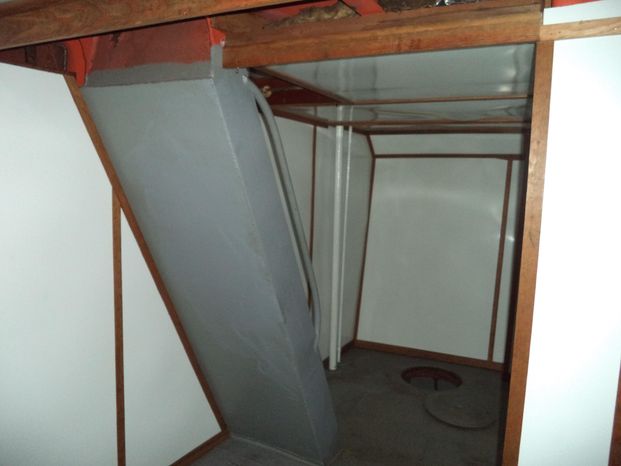

This is a multiple compartment, steel ex fishing vessel originally built in 1972 by Universal Iron Works in Houma, Louisiana as a supply vessel. Her basic layout consists of a void forward followed below decks by a crew cabin with a ladder to starboard leading up to her main deck. Her crew-s quarters are followed by a general area with settee seating, a head and miscellaneous stowage and then set to starboard is another ladder leading up to the main deck, followed by her relatively large galley area with a four burner stove and oven, At the aft end of this area is another ladder leading up through a watertight door to her main deck with a 20" coarninq. In the cabin house on her main deck is her pilothouse, slightly raised, with watertight doors on port and starboard with a step down companionway leading to another head and shower set to port, another settee arrangement, and to starboard are the two ladders leading to the forward crew area and the galley area and aft of this is a four berth stateroom. At the aft end of this house is another watertight door with a 20" coaming to the after raised deck, From this after raised deck there is a step down to her main deck with access on port and starboard to her engine space below. Access to her engine space on the starboard side it through a ladder and to port is a stairway leading down to the twin engine space with two generators, Her bulwarks forward are approximately 40" narrowing down to 34" running aft and at her transom. Adequate freeing ports are installed and she has gates port and starboard, Over her cabin house is general stowage for her emergency life raft and 406 EPIRB.

Basic Boat Info

Tax Status: Not Applicable
Boat Name: Hana Moku
Make: Custom
Model: Louisiana Steel Work Vessel
Year: 1972
Condition: Used
Category: Power
Builder: Houma, LA. (Universal Iron Works)
Construction: Steel

Dimensions

Length: 96 ft
Length Overall: 96 ft
Beam: 25 ft
Max Draft: 10 ft
Min Draft: 5 ft
Displacement: 192,000 lb
Cabin Headroom: 7 ft
Dry Weight: 130,000 lb

Engines / Speed

Engines: 2
Engine #1 Specs:
  • Make: Detroit
  • Model: 12v71
  • Drive Type: Direct
  • Fuel: Diesel
  • Engine Power: 700hp
  • Type: Inboard
  • Propeller Type: 4 Blade, Bronze
Engine #2 Specs:
  • Make: Detroit
  • Model: 12v71
  • Drive Type: Direct
  • Fuel: Diesel
  • Engine Power: 700hp
  • Type: Inboard
  • Propeller Type: 4 Blade, Bronze
Total Engine Power: 1,400hp
Cruising Speed: 8 kn
Displacement Type: Full Load

Tanks

Fuel Tanks: 2
Fuel Tank Capacity: 18,000 gal
Fuel Tank Material: Steel
Water Tanks: 2
Water Tank Capacity: 10,000 gal
Water Tank Material: Steel
Holding Tank Count: 2
Holding Tank Capacity: 1,000 gal
Holding Tank Material: Plastic

Other

Heads Count: 2
Drive Type: Direct
Boat Class: Commercial Boats

Contact

John Dukesherer
Aloha! We look forward to working with you and helping make your dreams come true.
Honolulu Yacht Brokerage International LLC

Office

Honolulu Yacht Brokerage International LLC
24 Sand Island Access Road Unit 19
Honolulu, Hawaii, US, 96819
Tel:808-528-(BOAT) 2628
Disclaimer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.


Surveyor Notes during re-fit survey

GENERAL CONDITION:

The vessel was surveyed by hammering, probing, and visual inspection, Hull was inspected in areas accessible without removal of any ceilings or interferences and without opening to exposure any areas ordinarily concealed. I do not survey internal condition of any engines, electric or electronic equipment, or

thruhull assemblies, Her underwater hull was audio gauged and two areas were cropped out as well as new framing installed, This was at the bow area and port amidships in way of her former fish hold, Inspection internally was relatively open since her main engines have been removed, waiting for new rebuilt Detroit diesel 12v71 's of 700 hp each. Her tanks were opened for cleaning, Framing, readily accessible in the engine room appears to be in good condition with no noted undue corrosion, The boat is in the process of being converted to a general workboat. Essentially she meets USCG and NFPA requirements, is considered to be reasonably maintained and is in apparently sound structural condition.

MATERIAL: Steel PLANKING: 3/8" est.

FRAMES: 4x3x1/4" els

CTC: 24"

DECKS: 1/4" steel est.

FASTENINGS: Weld

Engines and tankage

Crane: Hydraulic 8 ton with telescope to 60’

* 2 – 1271 Detroit main engines with 6 ½ -1 reduction gear

* Shafts were just balanced with 0 hours

* New cutlass bearing with 0 hours

* Brand new Teleflex steering system with new ram and plumbing

* Gen Sets: 1 – 180 KW

1 – 200 KW

1 – 30 KW

* Power curve was conducted with new propellers provided by S&S propeller in Fort Lauderdale

* Fuel tank holds approximately 18,000 gallons. Estimated 50,000 gallons total of water, sewage and fuel combined

* Fuel consumption: approximately 10 gallons per hour x 2, Generator – 6 gallons per hour for total of 26 gallons per hour to burn

* Electrical – generator cleaned and wiring professionally installed to main power supply box including breakers



Additional Information Update

Items to be addressed:

* Wiring to staterooms and pilot house incomplete

* Living accommodations need to be installed

* Navigational and electronics need installation

* Purchase of all safety gear

Disclaimer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
Additional Contact Information



Owner wants an offer. Easy to show!




$
%
$
